10 kWp PV complete system pitched roof Full Black – Hybrid

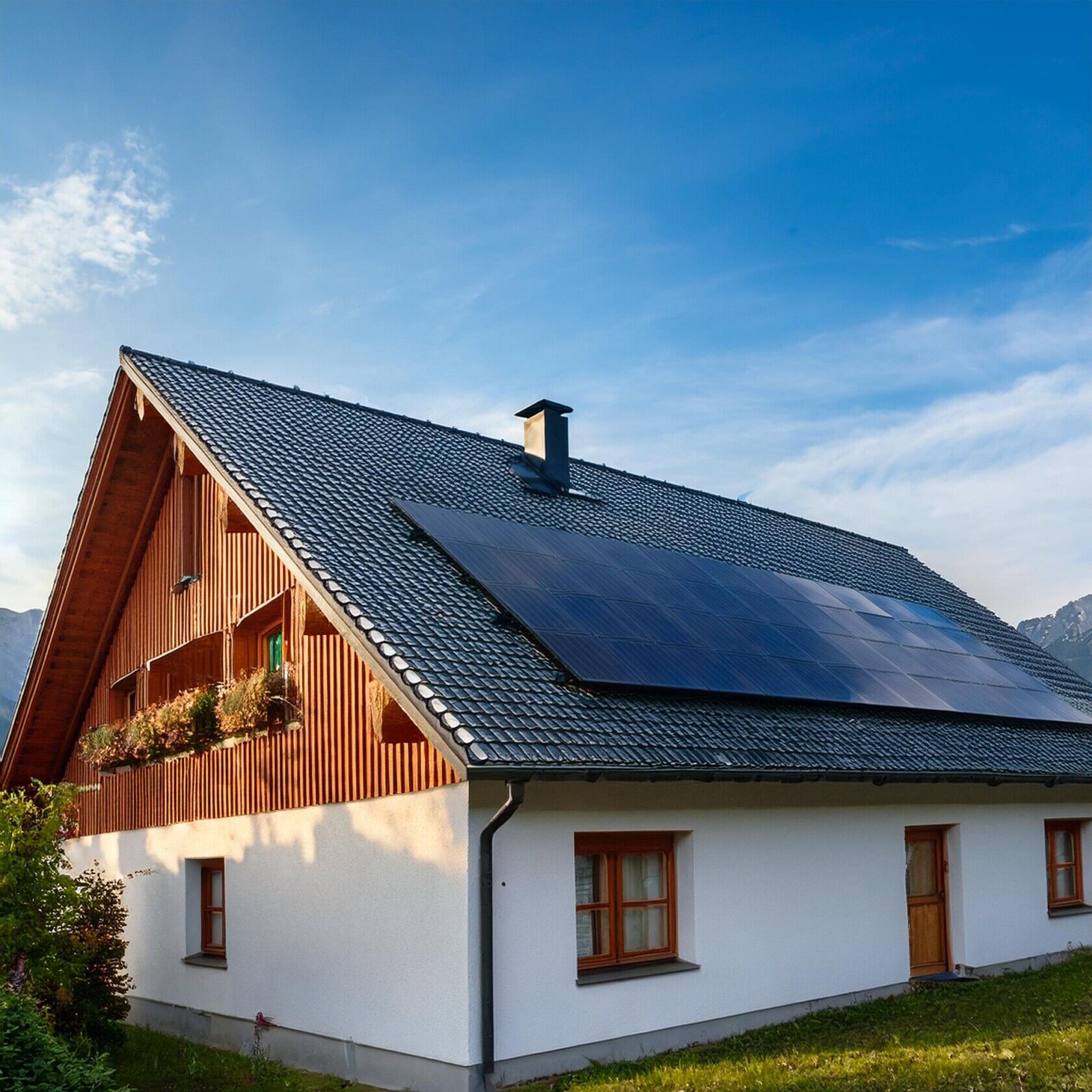

The pitched roof photovoltaic system complete set with an output of 10 kilowatt peak (kWp) is a first-class solution for the efficient use of solar energy.

Powerful solar modules – Tenka Solar Premium

The photovoltaic system is equipped with state-of-the-art Tenka Solar Ultimate 480 – Back Contact Bifacial Full Black 480 Watt modules, achieving a power output of 10,23 kWp. These modules maximize energy harvesting and ensure efficient conversion of sunlight into electrical energy.

Hail protection class 4

Fronius inverters

The integrated Fronius GEN24 Plus hybrid inverter ensures optimal conversion of the generated direct current into grid-compliant alternating current. Fronius stands for quality and reliability, which means the system guarantees a constant power supply.

You can connect the inverter to an optional BYD B-Box Premium HVS or HVM at any time (a Fronius Smart Meter is required). The system also offers blackout protection via the optional emergency power switch.

substructure from K2 Systems

The robust substructure from K2 Systems ensures secure installation of the solar modules on the pitched roof with tile covering and optimal rear ventilation. K2 Systems is known for its high-quality and precisely manufactured mounting systems, which ensure easy installation and long-term stability.

The set includes:

• 22x TENKA Solar Ultimate 480 – Back Contact Bifacial Full Black 480 Watt
• 1x Fronius Symo GEN24 10.0 Plus
• 1x Fronius Smart Meter TS65A-3
• 1x Fronius DC overvoltage protection type 1+2 for 2 MPPT for GEN24
• 1x solar cable 6mm2 black, 100m
• 10x MC4 connector FEMALE
• 10x MC4 connector MALE

Substructure from K2 Systems consisting of:

• 40x SingleHook 3S
• 20x OneEnd Black Set 30-42 end clamp
• 30x OneMid Black Set 30-42 middle clamp
• 20x SingleRail 36 End Cap
• 10x Lightning protection MH set
• 30x TerraGrif K2SZ
• 20x SingleRail 36; 3.65m
• 10x SingleRail Connector Set
• 1 Pkg. K2 Solar Cable Manager
• 1 pack of wood screws 8×100

What else you need:

1. Fuse and supply cable of the inverter (strongly dependent on the installation location)
2. ground wire
3. Tools

Delivery within Austria and Germany is free.

If you would like to make changes to the set (e.g. change the number of modules) or prefer the system with a Huawei inverter, for example, please contact our sales department at: info@pv-24.at
