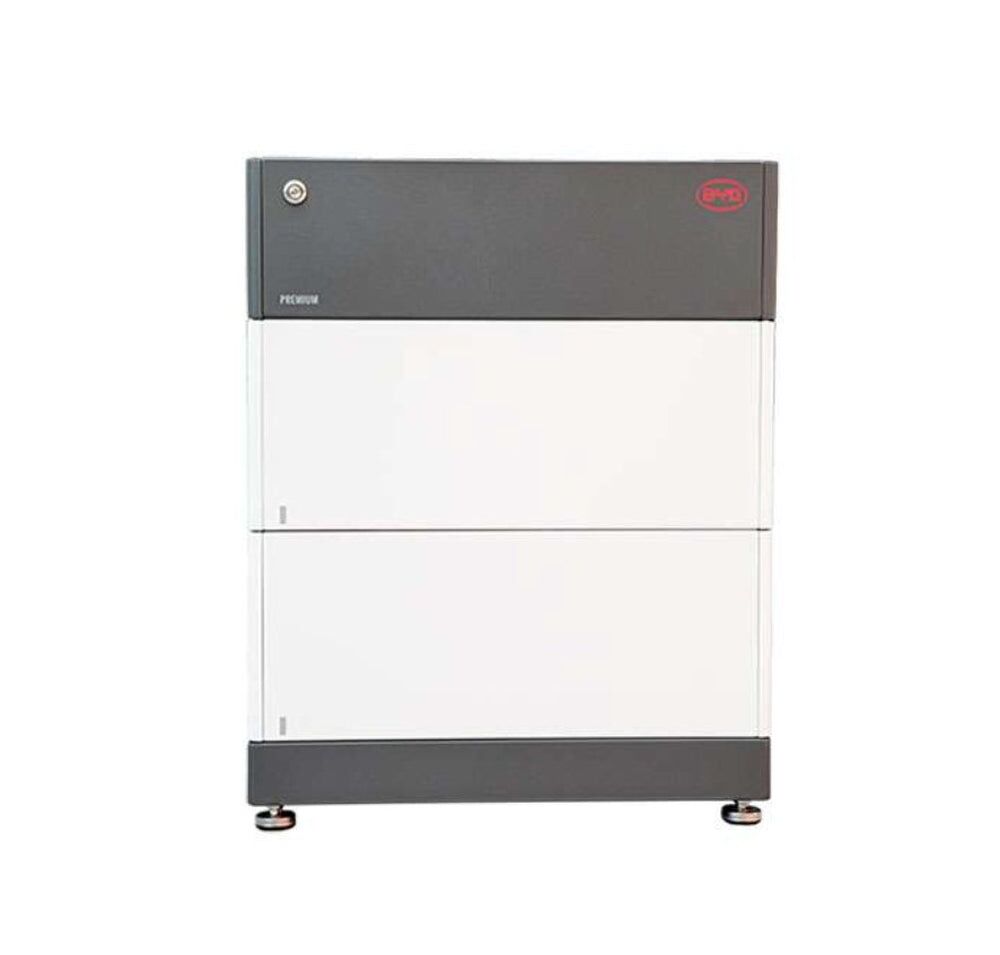

BYD B-BOX HVS 5.1 storage set
A Battery-Box Premium HVS consists of 2 to 5 HVS battery modules connected in series to achieve a capacity of 5,1 to 12,8 kWh.
The direct parallel connection of up to 3 identical Battery-Box Premium HVS also enables a maximum capacity of 38,4 kWh.
Perfect for your Fronius, Kostal, GoodWe, SMA, Sungrow, KACO or Solis hybrid inverter.
The system can be expanded later by adding additional HVS modules or parallel HVS towers.
- Powerful emergency/backup power and off-grid functionality
- Award-winning efficiency thanks to true series connection
- The patented modular plug-in design requires no internal wiring and allows maximum flexibility and ease of use
- Cobalt-free lithium iron phosphate battery (LFP): Maximum safety, service life and performance
- Compatible with leading 1- and 3-phase inverters
- Two different modules to cover the entire system size range
- Highest safety standards such as VDE 2510-50
- 10-year manufacturer's warranty - terms and conditions apply in accordance with BYD's warranty (BYD Battery-Box Premium Limited Warranty Letter)
Technical information
| battery module | 2,56 kWh, 102,4V, 38kg |
| number of battery modules | 2 |
| Usable capacity | 5,12 kWh |
| Max output current | 25A |
| peak output current | 50A, 5s |
| nominal voltage | 204V |
| voltage range | 160-240V |
| Dimensions (H/W/D) | 712x585x298 mm |
| Weight | 91kg |
Delivery:
- 2x battery module HVS
- 1x BMS and stand
