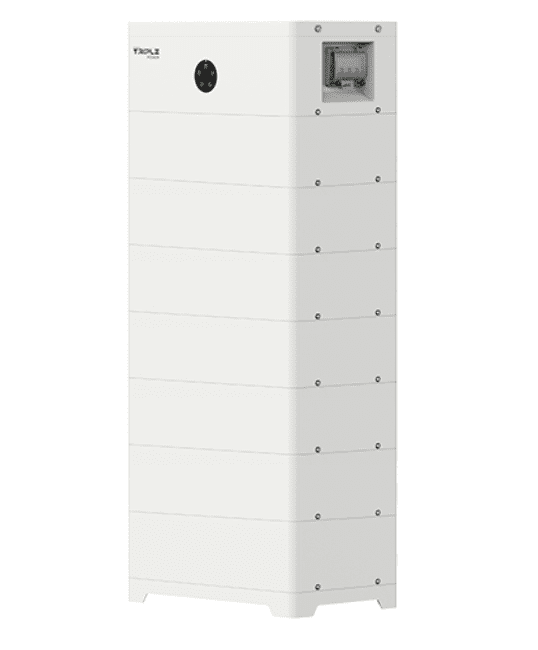

T-BAT SYS T-HS35.8 – HV storage (32,2 kWh usable)
The T-BAT SYS T-HS35.7 is a modular high-voltage battery storage system with 32,2 kWh usable capacity It enables reliable, highly flexible power storage for large-scale projects, multi-family homes, commercial, and industrial applications. Featuring state-of-the-art lithium-ion technology, an integrated battery management system (BMS), and a scalable architecture, it meets the highest standards of efficiency, performance, and safety.
- 32,2 kWh usable capacity: Ideal for energy-intensive applications and large consumers
- Modular & scalable: Up to 8 T-BAT SYS HV-S 5.1 modules (4,5 kWh each) can be combined
- Lithium-ion technology: Durable, efficient and safe with high cycle stability
- Integrated BMS: Permanent cell monitoring, overload protection and intelligent energy distribution
- Compact design: Space-saving solution, ideal for technical rooms, basements or industrial facilities
- Compatible with leading inverters: Particularly easy integration into PV and energy management systems
Attention:
UN3480 Lithium-ion batteries,9, (E)
Transport category 2
Technical information
| Capacity (usable) | 32,2 kWh |
| memory type | High-voltage lithium-ion |
| nominal voltage | 819,2 V |
| Modules | 7 × T-BAT SYS HV-S 5.1 modules (4,5 kWh each) |
| Battery Management | Integrated BMS (Master Unit required, sold separately) |
| Dimensions (W × H × D) | approx. 650 × 1760 × 245 mm |
| Weight | approx. 384 kg (including master unit) |
| Class | IP20 (indoor use only) |
| Operating temperature | -10 ° C to +50 ° C |
| Guarantee | 10 years (after registration) |
Special Notes
- The system can be flexibly expanded or adapted to growing energy requirements.
- Installation and commissioning only by qualified personnel.
This product contains batteries. » More information about batteries + notes
