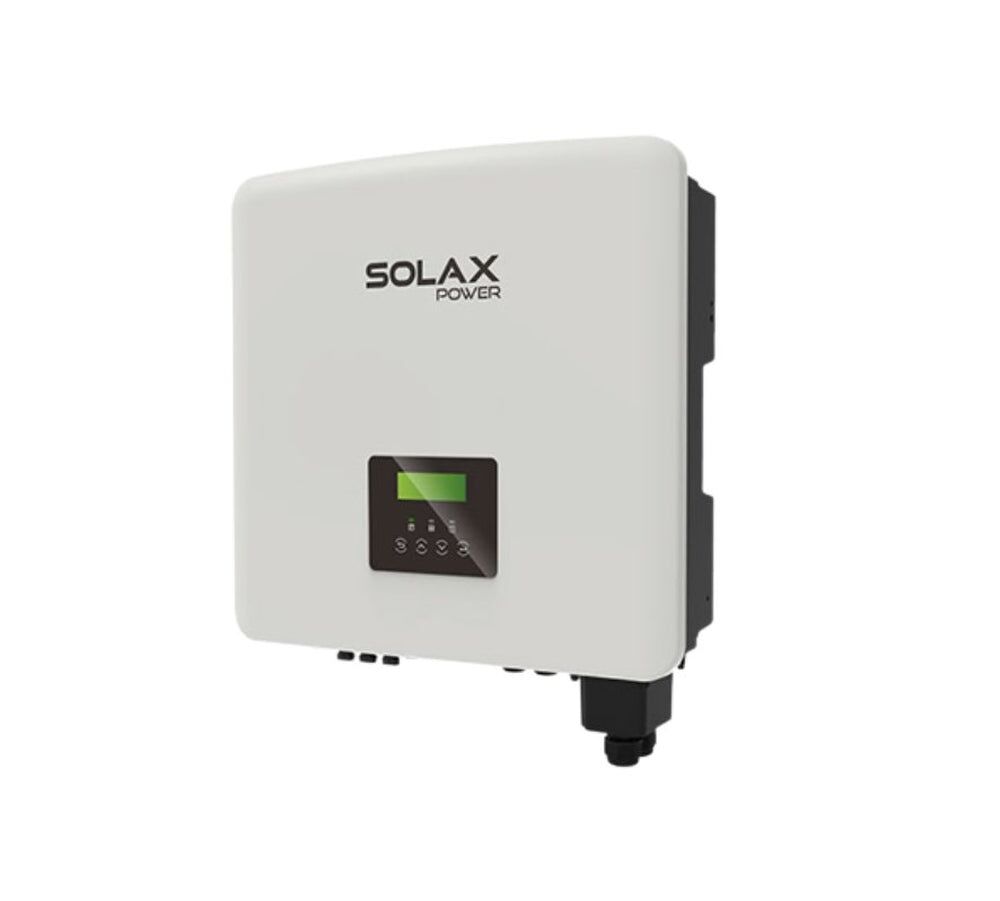

✔️ SOLAX X3-Hybrid-D 15.0kW
✔️ 150% PV overload and 110% AC overload possible
✔️ Maximum 150% overload possible
✔️ High charging and discharging efficiency up to 97,5%
✔️ Integrated shadow management

SolaX three-phase inverters feature a wide MPPT voltage range to harvest more energy and have a maximum input voltage of 1100V with a maximum efficiency of 98,5%. In addition, SolaX three-phase inverters are IP66 rated, have no internal fan and come with optional plug-and-play WiFi.

Please note: : For the registration of the system in Solax Monitoring, the Pocket Wifi Interface 3.0 or Pocket Lan Interface 3.0 recommended

SOLAX X3-Hybrid-D 15.0kW Information

• With 16A PV input current suitable for all module types
• Excess energy is stored in the battery
• Low starting voltage ensures a long daily operating time
• Low conversion losses

SOLAX X3-Hybrid-D 15.0kW Smart:

• Switching time less than 10ms
• Easy setup and configuration
• Compatible with lithium or lead batteries
• Compatible with EnergyMeters or measuring transformers
• Intelligent load management
• parallel function in ON- and Off-Grid operation
• 5 operating modes individually adjustable
• VPP ready supports power management functions
• Asymmetrical feed-in possible
• Degree of protection IP65
• Integrated surge arresters

General Information

• Operating temperature range: -35~60 (reduction above +45 °C)
• Weight: 30 kg
• Dimensions: 503×503×199

Manufacturer's warranty conditions:

• Inverter: 10 years
