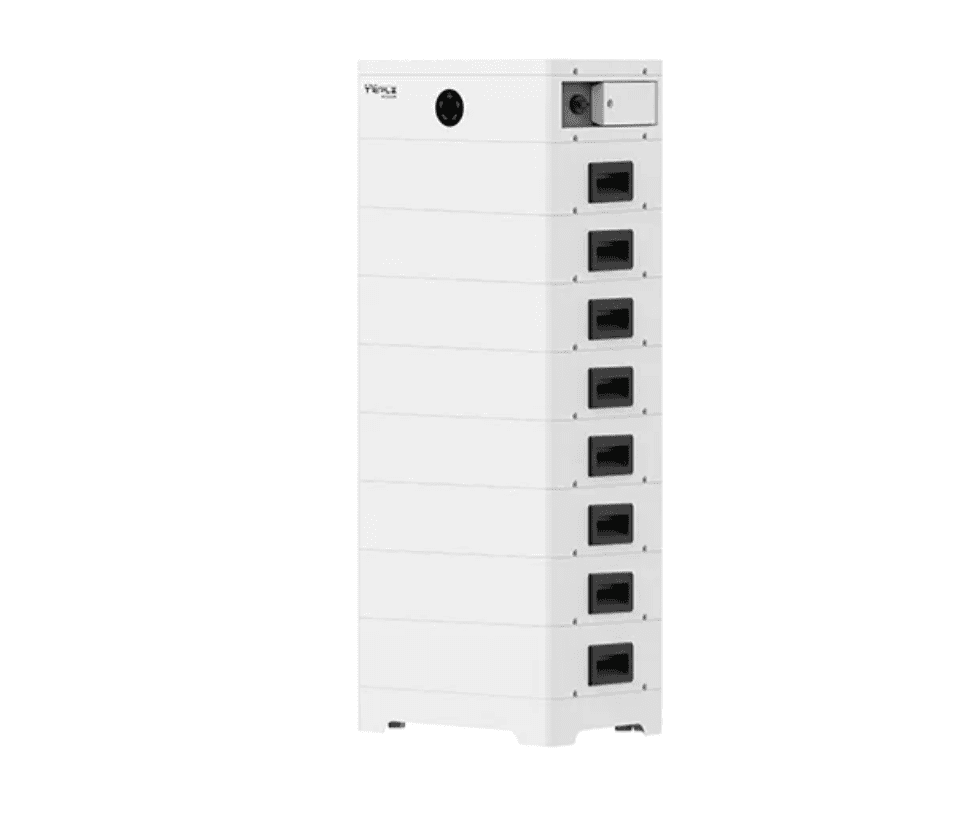

SolaX Power T-BAT-SYS-HV-S3.6 (26,4 kWh usable) | High-voltage storage set with 8 LFP modules and BMS

The T-BAT-SYS-HV-S3.6 (26,4 kWh) is a
modular high-voltage storage system the latest
T-BAT SYS-HV-S Series and offers a usable capacity of 26,4 kWh.
With his wireless plug-and-play stacking design It is ideal for
SolaX X3-Ultra hybrid inverter (15–30 kW),
However, it can also be used in conjunction with smaller hybrid systems.

The installation is carried out fast, safe and without any cabling required.
The Unlimited expandability The system can be flexibly adapted
Adapt to future requirements.
Thanks LFP cell technology, IP65 protection class and
passive cooling The storage system impresses with maximum security, efficiency and longevity.

Produktvorteile

• Wireless stackable design – simple & safe installation
• Up to 13 memory modules can be combined per unit
• Expandable without time limit – full flexibility
• Diagnostics & Updates directly via the inverter
• LFP technology – safe, stable and durable
• IP65 protection class – suitable for indoor and outdoor installation

Technische Merkmale

• Storage type: high voltage
• Usable capacity: 26,4 kWh
• Nominal voltage: 409,6 V
• cell chemistry: LiFePO₄ (LFP)
• Communication: CAN
• Cooling: passive
• Extension time window: unlimited
• Structure per unit: 2–13 battery modules
  (For more than 9 modules, two towers are required – the second tower requires a Solax Series Box.)
• Protection class: IP65K
• Dimensions (H × W × D): 1333 × 510 × 365 mm
• Weight Storage 8 × 33,5 kg + BMS 10,0 kg
• Dangerous goods labeling: UN 3480 – Lithium-ion batteries, transport category 2

Delivery

• 1 × Solax MCS0800 BCU + socket
• 8 × Solax HS 3.6 storage module

Example of use

For example: A PV system with 30 kW
in combination with one SolaX X3-Ultra 25 kW hybrid inverter
will be with the T-BAT-SYS-HV-S3.6 (26,4 kWh) .
Eight LFP modules are connected via the MCS0800 BCU wirelessly connected and
form an efficient, maintenance-free high-voltage storage system.
The system can be expanded or supplemented with a second tower at any time later.
