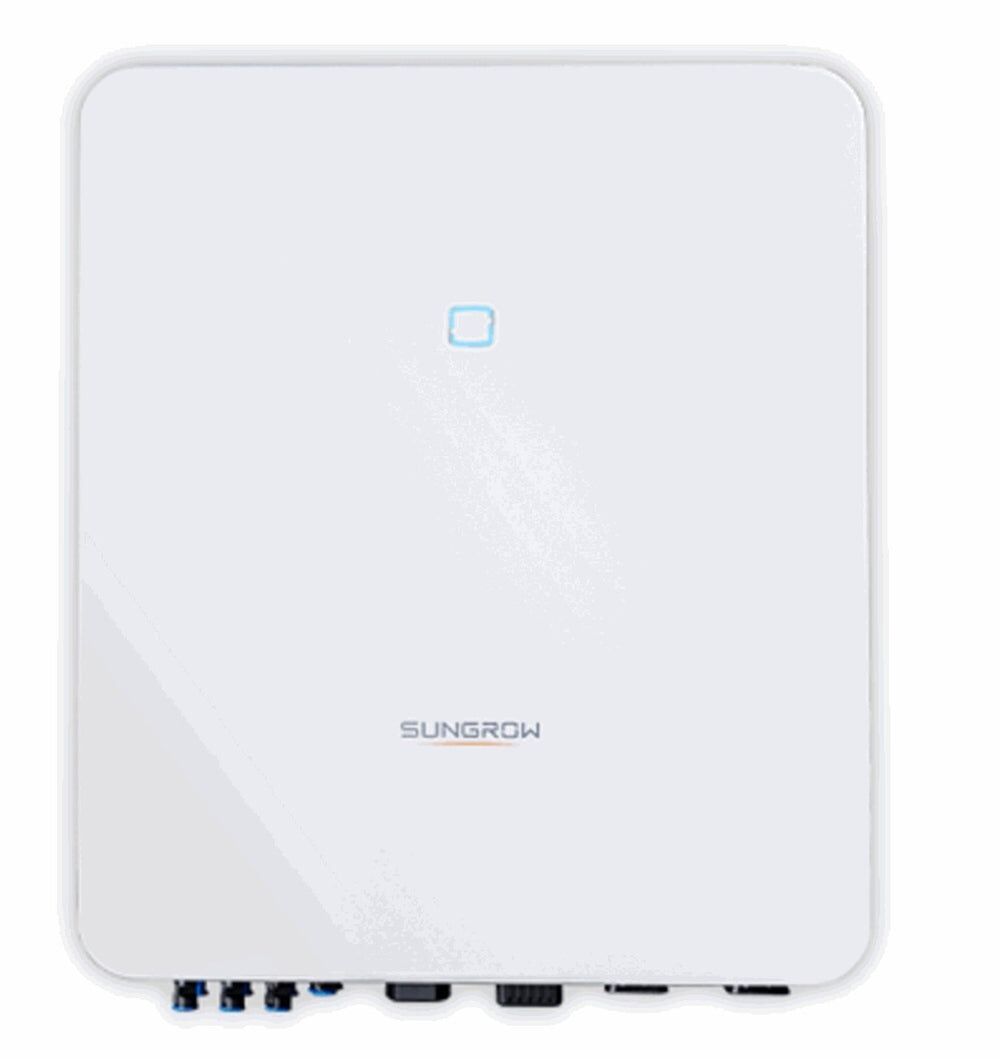

SungrowSH5.0RT-V112

5kW hybrid inverter

The powerful combination with the proven Sungrow hybrid inverters creates the best conditions for all areas of application. Suitable storage systems can be found from the in-house SBR series to Axitec, Pylontech and BYD. With power classes from 5 to 10 kW, there is a suitable device for every house. By connecting up to 5 systems in parallel, applications in the small commercial sector are also conceivable.

Product advantages:

• Suitable for high-performance modules

• Emergency power operation via backup connection

• AC + DC surge protection type 2 integrated

• Up to 5 systems in parallel operation

Produkteigenschaften:

• AC power: 5,0 kW

• Number of MPPTs: 2

• DC input current: 13,5 A per MPPT

• AC connection: 400V, 3-phase

• Communication: Wifi, LAN, RS485, CAN, 4 x DI (FRE), 1 x DO (WP)

• Protection class: IP65

• Cooling: passive

• Dimensions: 540 x 470 x 170 mm (L x W x H)

• Weight: 27,0 kg

• Warranty: 10 years

• WiNet Dongle and Smart Meter DTSU666 included
