Product Identity Note: This wallbox is identical to the Huawei Smart Charger 22 kW in our shop. Both product pages show the same hardware with the manufacturer's model number SCharger-22KT-S0 and the article number 02314BXL-003. The scope of delivery, warranty, and price are identical. You are ordering the same device regardless of which page you choose. "Fusion Charge" is Huawei's current marketing name; "Smart Charger" is derived from the internal model code.

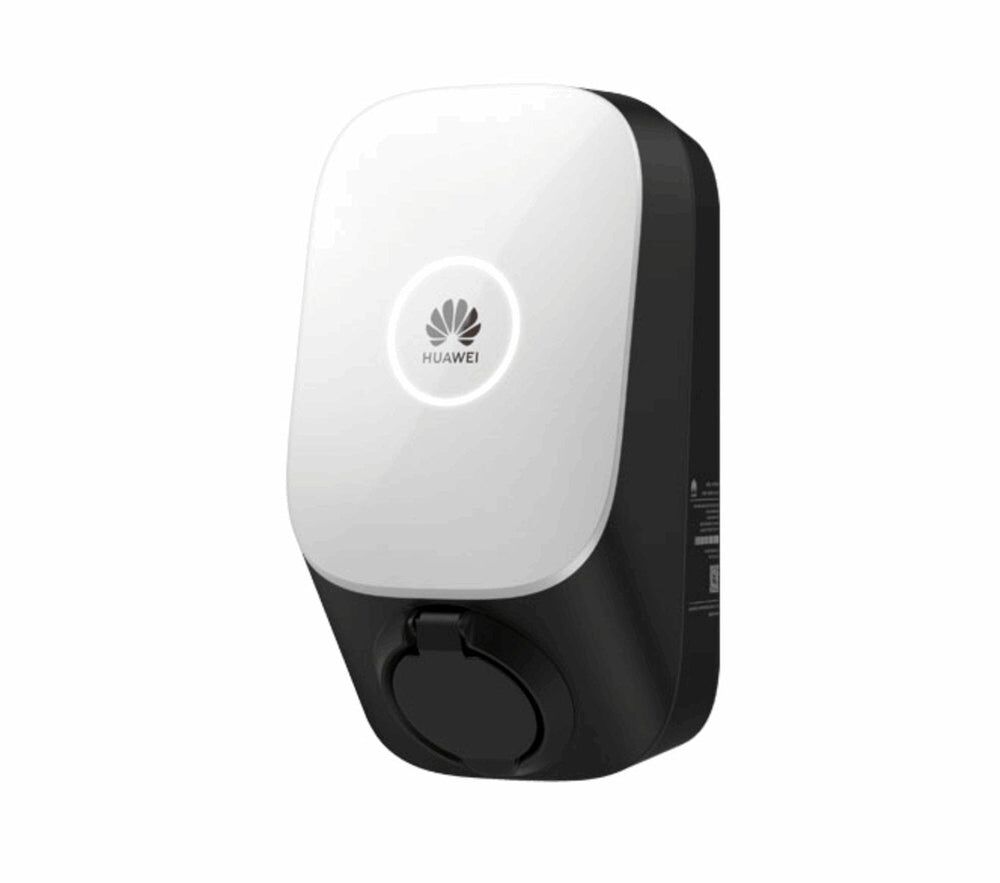

Huawei Fusion Charge 22kw Wallbox
22KT-S0/AP22N-EU MANUFACTURER ITEM NUMBER: 02314BXL-003
Product Information
Three-phase EV charger with Type 2 socket.
Both a Type A (30mA) and a DC 6mA RCD installed.
The Huawei Fusion Charge is the ideal addition to the SUN2000 storage system. Directly connected, you can see all energy flows from the system and charger in one app. Charging with PV surplus and automatic phase switching for even more efficiency. Even the installation is fun, with a quick 3-step concept and integrated residual current circuit breaker, everything is quick and easy.
Huawei FusionCharge AC Wallbox – 22kW charging station for your home
The Huawei FusionCharge AC Wallbox offers intelligent and powerful charging for your electric vehicle – ideal for PV-optimized households and anyone who wants to invest in e-mobility for the future.
🔋 Highlights of the Huawei FusionCharge Wallbox
- Power: Up to 22 kW (3-phase, 32A)
- Compatible with Huawei PV systems – including SmartDongle & SmartPower Sensor
- PV surplus loading possible for maximum self-consumption optimization
- Intelligent control over FusionSolar App
- RFID access control – 2 cards included
- Fast installation with wall mount & preconfigured software
- Integrated DC residual current protection – no external FI-B required
⚙️ Technical data
| Model: | FusionCharge SCharger-22KT-S0 / AP22N-EU |
| Charging capacity: | 1,4 – 22 kW, adjustable |
| Connection: | Type 2 charging socket |
| Communication: | LAN / WLAN / Bluetooth / Modbus TCP |
| Protection class: | IP54 – suitable for indoor & outdoor use |
| Size: | 335 x 180 x 145 mm |
| Weight | Approx. 2,8 kg |
🚗 Why this wallbox?
The Huawei 22kW wallbox is the perfect complement to your Huawei PV system and offers future-proof charging with intelligent energy distribution – ideal for single-family homes, multi-family buildings or commercial properties.
📦 Scope of delivery:
- Huawei FusionCharge AC Wallbox (22kW)
- Wall mount & mounting material
- 2x RFID cards
- Safety Instructions & Quick Start Guide
Order now and charge your electric car efficiently and with solar optimization!
Huawei Smart Charger:
- Run your car with solar energy
- Automatic phase switching
- Automatic switching between one and three phases
- three-way authentication
- Bluetooth
- RFID
- app on mobile device
- Dynamic Charging Performance
- Automatic detection and adaptation
- prevents overloading of the mains connection
- A single application
- Complete control through a single application
- Applicable for PV, ESS and charger
- 3-step installation
- Fast installation within 16 minutes
- Wiring-free maintenance
- Product No.: SCharger-22KT-S0 02314BXL-003
- Solar charging: Yes, with PV inverter
- Back office compatible: No
- Mounting type: Wall mounting
- Width: 180 mm
- Height: 335 mm
- Depth: 145mm
- Nominal connected load: 22 kW
- Input Voltage: 320-480V
- Frequency: 50/60Hz
- Protection class (IP): IP54
- Number of charging points: 1
- Number of RCDs Type A: 1
- Number of residual current devices type B: 1
- Max. power per charging point: 22 kW
- Number of charging connectors Type 2: 1
- DC fault current detection: Yes
- Design Connection System Side: 3-phase
- Type: 22KT-S0
- Manufacturer: Huawei
- Series: SCharger
- Made in China
1 piece: Smart Charger 22KT-S0
Order the Huawei Fusion Charge 22 kW wallbox securely now.
The Huawei Fusion Charge 22 kW wallbox charges your electric vehicle three-phase at up to 32 A in under three hours to a charge level of 60 kWh. The compact housing measures 335 x 180 x 145 mm and weighs only 2,8 kg, making it suitable for wall mounting in carports, garages, or company parking lots. Its IP54 rating allows for outdoor use in temperatures ranging from -30 to +55 degrees Celsius.
Combine the permanently installed Type 2 connector with a suitable Type 2 charging cable from our range. The integrated DC residual current protection (Type A plus B) eliminates the need for additional RCDs in the fuse box and significantly reduces your installation costs. Automatic phase switching continuously adjusts the charging power to the available electrical connection and prevents overloads.
Included in the delivery are the wallbox, a wall bracket, all necessary mounting hardware, and two RFID cards for access control. At PV-24, you order directly from stock from a certified specialist retailer in Tyrol and benefit from Trusted Shops buyer protection. Local pickup is possible by appointment.
Secure the best price for the Huawei Fusion Charge AC Wallbox
PV-24 offers a price-match guarantee for the Huawei Fusion Charge AC wallbox. If you find the identical model SCharger-22KT-S0 cheaper, simply contact us and we will adjust the price. Over 5.000 satisfied customers and more than 10.000 processed orders prove that this promise is reliably kept.
The following overview shows the most important technical data of the Huawei Fusion Charge in direct comparison.
| feature | Huawei Fusion Charge 22 kW |
|---|---|
| charging power | 22 kW, 3-phase, 32 A |
| input voltage | 320 to 480V |
| Charging time 60 kWh battery | about 3 h |
| Connection | Type 2 permanently installed |
| Protection class | IP54 (Indoor and Outdoor) |
| Communication | LAN, WLAN, Bluetooth, Modbus TCP |
| access control | RFID including 2 cards |
The 22 kW version is particularly suitable for vehicles with a three-phase 22 kW on-board charger and for households with high daily driving power requirements. A complete overview of other 22 kW wallboxes helps with comparison with models from other manufacturers. Those specifically looking for other Huawei wallboxes will find the complete model selection there.
PV surplus charging with the Huawei Fusion Charge wallbox
PV surplus charging with the Huawei Fusion Charge Wallbox uses excess solar power from your photovoltaic system directly to charge your electric vehicle. The wallbox communicates with compatible Huawei inverters via Modbus TCP, LAN, WLAN and Bluetooth and dynamically adjusts the charging power to the current solar power generation.
The system is controlled via the FusionSolar app, which is available free of charge in the App Store and on Google Play. Three charging modes are available. Solar mode charges exclusively with excess PV power, mixed mode supplements grid power when needed, and fast mode utilizes the full 22 kW output regardless of solar yield. Time control, energy statistics, and a charging cost overview are active in every mode.
Without its own Huawei inverter, the wallbox operates as a standalone charging solution with constant or time-controlled power output. When combined with a Huawei energy storage system, the self-consumption rate increases even further, as stored solar energy also flows into the vehicle in the evening. You can receive free system design advice via WhatsApp on weekdays from 9 am to 12 pm.
Frequently Asked Questions about Huawei Fusion Charge
Is the Huawei Fusion Charge the same product as the Huawei Smart Charger?
Yes, the Huawei Fusion Charge and the Huawei Smart Charger refer to the same device with the manufacturer's model number SCharger-22KT-S0 and the article number 02314BXL-003. "Fusion Charge" is Huawei's current marketing name, while "Smart Charger" is derived from the internal model code. At PV-24, you'll find the product listed under both names because customers use different search terms to find it. The hardware, included accessories, warranty, and price are exactly the same in both listings.
What charging power can my electric vehicle achieve at the Huawei Fusion Charge?
The Huawei Fusion Charge delivers up to 22 kW; however, your vehicle will only use as much power as its on-board charger can handle. Models like the Tesla Model 3 (11 kW), Renault Zoe (22 kW), and VW ID.4 (11 kW) illustrate the range. With a single-phase vehicle configuration, the charging power is reduced to approximately 7,4 kW. Refer to the manufacturer's data sheet for the exact specifications of your specific vehicle.
Does the Huawei Fusion Charge also work without a Huawei inverter?
Yes, the Huawei Fusion Charge charges completely independently of a photovoltaic system and without a Huawei inverter. In this case, you use grid power with fixed or time-controlled output via the FusionSolar app. However, the intelligent functions such as PV surplus charging, automatic phase switching, and dynamic load management only reach their full potential when combined with a Huawei inverter and a compatible smart meter.
