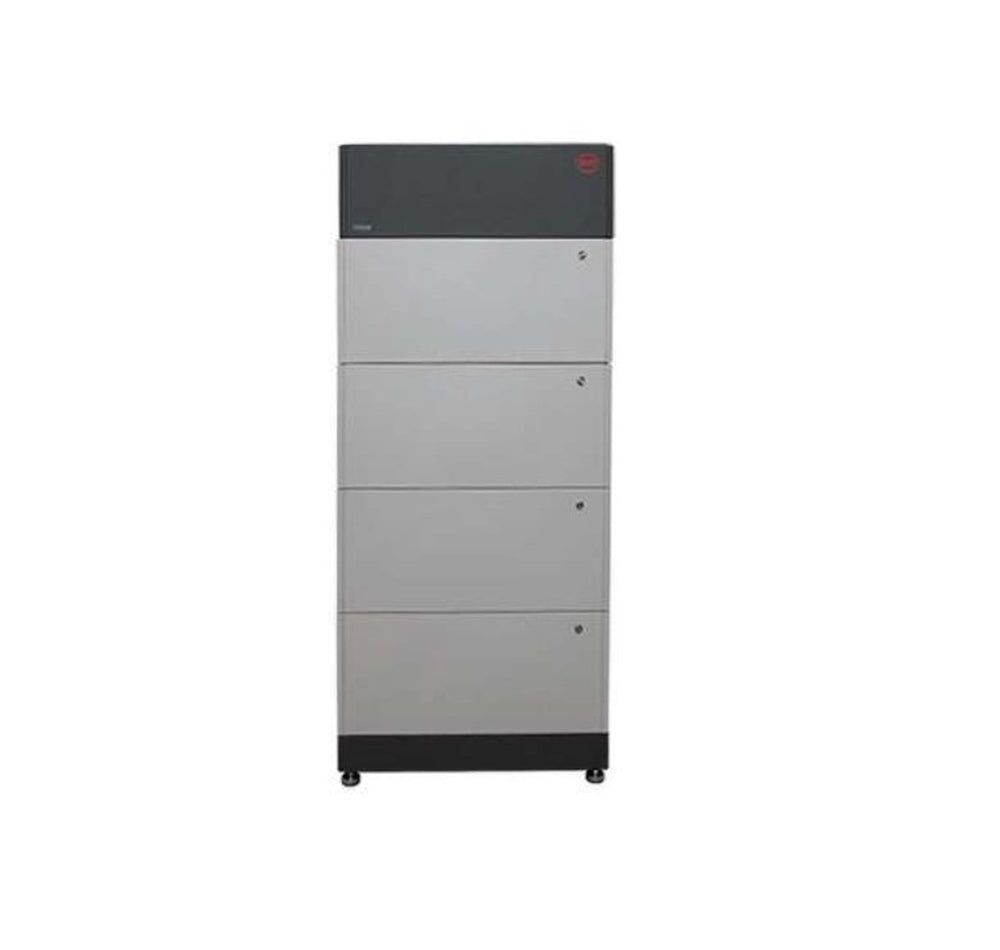

BYD B-BOX LVS 16.0
Compatibility List_BYD_Battery-Box Premium_LVS
The B-Box LVS 16.0 low-voltage storage of BYD with 16,0 kWh of usable storage capacity is ideal for higher self-consumption.
The strong discharge performance and backup power + off-grid capability allows system operators to make their home completely self-sufficient. The new B-Box LVS uses the LFP memory technology (lithium iron phosphate) is used, which does not contain cobalt and promises greater safety, performance and a longer service life.
Important note: The DC connection cable for connecting the B-Box LVS to the inverter is not included in the scope of delivery and can be ordered separately from us. Please indicate after ordering whether you need a connection cable for SolarEdge or SMA inverters.
The BYD Battery-Box Premium LVS is a lithium iron phosphate battery (LFP). A Battery-Box Premium LVS tower contains 1 to 6 parallel stacked LVS battery modules and can achieve a capacity of 4 kWh to 24 kWh.
Solaredge storage
Connect up to 16 Battery-Box LVS 16.0 in parallel for a maximum size of 256 kWh. The system can be expanded later by adding additional LVS modules or by connecting several towers with 1 to 4 modules in parallel.
- capacity from 4 kWh to 256 kWh
- Maximum flexibility for every application with up to 64 modules connected in parallel
- Compatible with market-leading 1- and 3-phase inverters
- Cobalt-free lithium iron phosphate battery (LFP): Maximum safety, service life and performance
- Powerful emergency power and off-grid function
- The patented internal plug design requires no additional wiring
- Self-consumption optimization for residential and commercial applications
| Technical information | |
| Model: | Battery-Box Premium LVS 16.0 |
| Number of battery modules: | 4 |
| Usable capacity [1]: | 16 kWh |
| Max output current [2]: | 250 A |
| peak output current [2]: | 360 A, 5 s |
| Nominal voltage: | 51,2 V |
| Voltage range: | 40 57,6-V |
| Dimensions (H/W/D): | 1227 x 650 x 298 mm |
| Weight | 199 kg |
| Ambient temperature: | -10°C to +50°C |
| cell technology: | lithium iron phosphate battery (cobalt-free) |
| Interfaces: | CAN / RS485 |
| IP protection class: | IP55K |
| Battery efficiency: | ≥95% |
| Parallel connection: | Max. 16 LV 16.0 Parallel (256 kWh) |
| Certification: | VDE2510-50 / IEC62619 / CE / CEC / UN38.3 |
| Application: | ON Grid / ON Grid + Backup / OFF Grid |
| warranty period [3]: | 10 years |
[1] Usable DC capacity, test conditions: 100% DOD, 0,2C charge and discharge at +25°C; usable capacity may depend on the inverter
[2] From -10 °C to +5 °C the performance is throttled
[3] Terms and conditions apply in accordance with BYD’s warranty (BYD Battery-Box Premium Limited Warranty Letter)
This product contains batteries. » More information about batteries + notes
