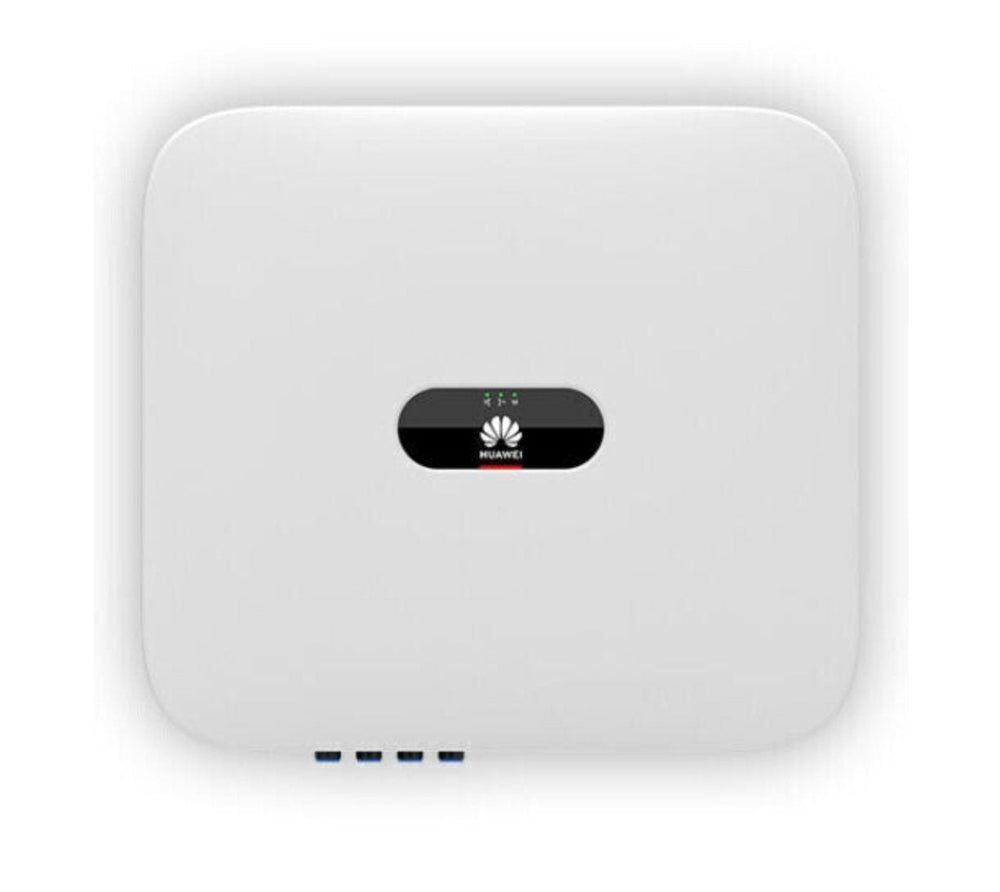

Huawei SUN2000-8KTL-M1 8KW HC

Product information “HUAWEI SUN2000 8KTL-M1 High Current”

The global manufacturer Huawei has been successful in the photovoltaic and storage market for years. This is also reflected in a wide range of inverters for every application. Regardless of whether it is an XXL large-scale system or a sophisticated complete system with storage and intelligent accessories for home use. Thanks to the direct connection of the in-house LUNA high-voltage storage system and the module optimizer, the 3-phase devices in the M1 series offer maximum flexibility in the residential sector. An extensive range of communication and protection components plus backup function rounds everything off perfectly.

Product advantages:

• 13,5 A input current per MPPT

• WLAN-FE dongle included with inverter

• Also compatible with Huawei optimizers

Produkteigenschaften:

• AC power: 8,0 kW

• Number of MPPTs: 2

• Surge protection: Type 2 AC + DC

• AC connection: 3-phase

• Communication: RS485, WLAN / LAN with dongle

• Protection class: IP65

• Cooling: passive

• Dimensions: 470 x 525 x 146 mm (H x W x D)

• Weight: 17,0 kg
